LCD-117-RIB KIT

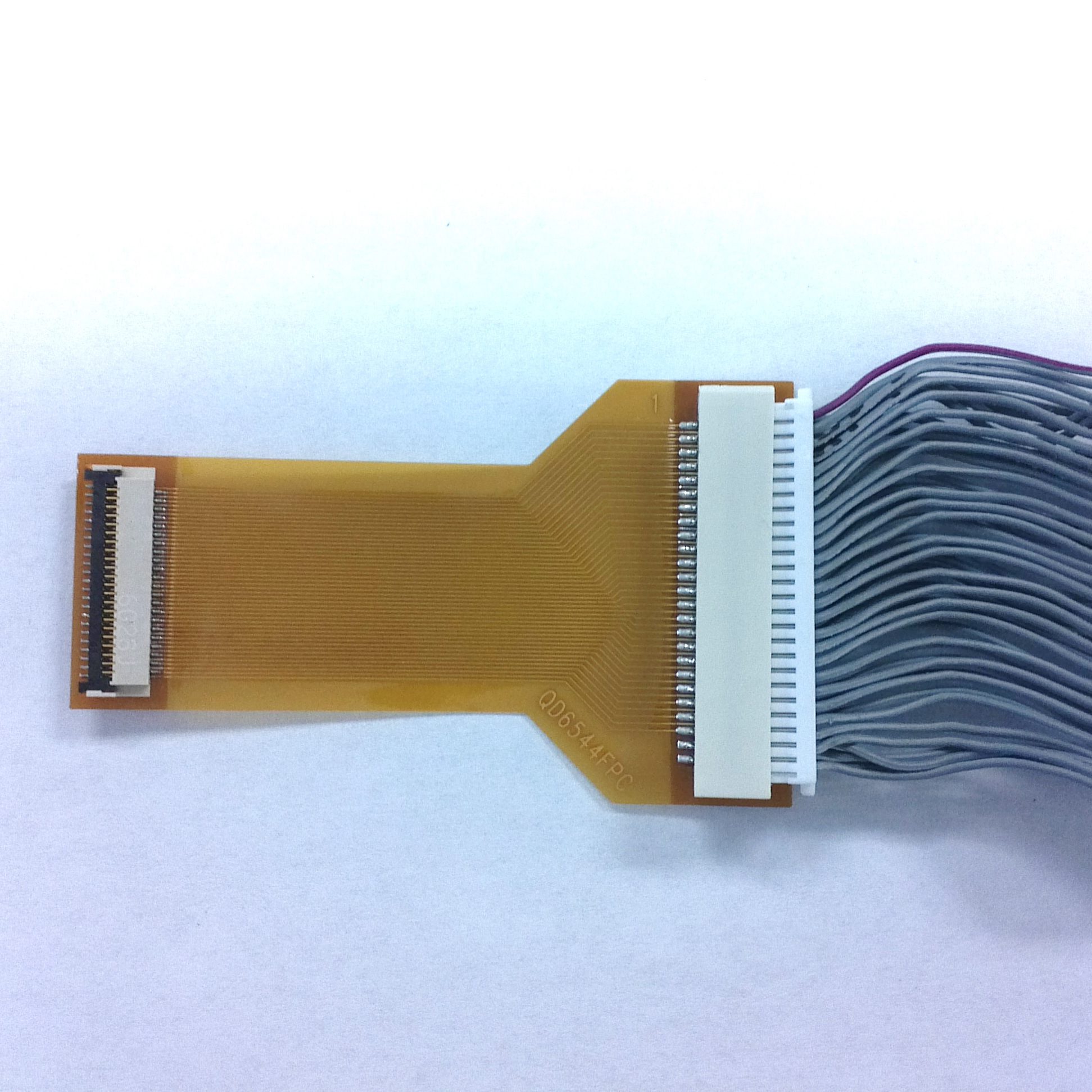

This kit allows a 45 position 0.30mm pitch FPC to be broken out into discrete wires. It consists of a QD6544 FPC which allows a 45 position FPC to be inserted, and the QD6544 connects to a ribbon wire flying lead.
This kit can be used with QD8063 which is a 45 position 0.30mm FPC, and this will allow connection with a 0.30mm pitch 45 position header, rather than a 0.30mm 45 position FPC pigtail. QD8063 can also be notched down to various conductor counts.
| Pitch (mm) | Conductors | Orientation | Plating | Length (mm) | Length (in) |
|---|---|---|---|---|---|
| 0.30 | 40 | 18 |
